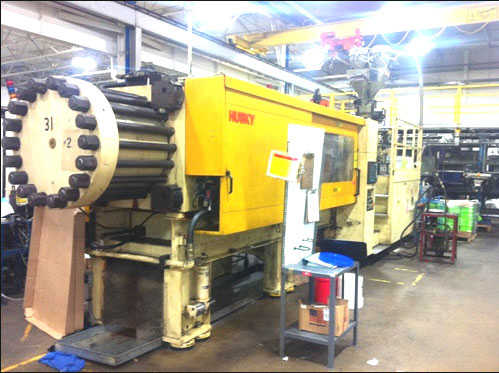

For Sale - UM - 7061 - Husky 550 ton Injection Molding Machine

1) Model: XL500RS85
- Type: Wide Platen XL Series
- Platen size: 51.40" x 51.40"
- Distance between tie bars: 36.20" x 36.20"
- Clamp stroke: 34.40"
- Maximum daylight: 73.80"
- Mold shut height: 14.38"/39.40"
- Ejector stroke (Max): 9.80"
- Screw diameter (L/D Ratio 25:1): 3.35"
- Injection pressure: 29,000 PSI

Equipped with:
- Wide Platen Design (XL Series)
- Siemens 115U microprocessor
- 64 Oz. Injection unit (85mm Screw)
- Hydraulic ejectors
- Core pulls on moving & stationary platen
- Hydraulic shut off nozzle
- Accumulators
- Mold cooling package
- High capacity barrel heaters
- Fail screw option
- High speed injection package
- Power front safety gates
- Full SPI mold mfg. pattern
- Auto purge (mold cooling)
- Closed loop controls
- Energy efficient pump motor
- Hopper magnet
- 460 volts
- Weight: Clamp only: 72,000 lbs
- Weight: Injection unit: 20,000 lbs
- Clamp Dim's: 18' L x 8' W x 10' H
- Injection unit Dim's: 18' L x 8' W x 9'5" H

2) Model: X500RS85
- Distance between tie bars: 28.30" x 28.30"
- Clamp stroke: 42.30"
- Maximum daylight: 81.70"
- Mold shut height: 14.38"/39.40"
- Ejector stroke (Max): 9.80"
- Screw diameter (L/D Ratio 25:1): 3.35"
- Injection Pressure: 29,000 PSI

Equipped with:
- Siemens 115 U Microprocessor
- 64 Oz. Injection unit (85mm Screw)
- Hydraulic ejectors
- Core pulls on moving & stationary platen
- Hydraulic shut off nozzle
- Accumulators
- Mold cooling package
- Hopper magnet
- 575 volts
- Weight: Clamp only: 72,000 lbs.
- Weight: Injection unit: 20,000 lbs.
- Clamp Dim's: 18' L x 8' W x 10' H
- Injection Unit Dim's: 18' L x 8' W x 9'5" H

(For images, please see next pages)
