Rubber Rollers, Printing Machine Rubber Rollers, Rotogravure Rubber Rolls, Flexographic Rubber Rolls, Lamination Rubber Rollers |
|
|
|
 |
Gayatri RubTech is a pioneer manufacturer and exporter of world class solution in web control. Gayatri RubTech manufactures specialised rotogravure rubber rolls , flexographic rubber rolls, lamination rubber rollers, printing machine rubber rollers, plastic machine rubber rollers, tin printing rollers, plywood machine rubber rollers, woven sacks machine rolls, abrasive machine rubber rollers, biscuit machine rubber rollers, paper mill rubber rollers, ebonite rollers, hard crome plating rollers, PU rollers, textile mill rubber rollers, chilling rollers and all types of rubber rollers.
Established in 1990 with manufacturing of rubber rollers for rotogravure, flexo printing, solvent less and solvent base and all types of plastic machinery & rotogravure rubber rolls, the company has demonstrated a continuous growth in terms of product development and up gradation of technology. Spread in 15,000 sq. feet area, the company is fully equipped with the-state-of-the-art technology and most modern infrastructure.
|
|
|
 |
Gayatri Rub Tech has deployed advanced technology with cost effective solutions. Our product range includes rotogravure & lamination rubber rolls, rotogravure rubber rolls, solventless lamination & extruder rolls, diamond cut rolls, flexographic rubber rolls, silicon rubber rolls, rubber expander rollers (banana rolls), M.S. steel rolls (mirror finish roll), groove rolls, & packaging polyester, film, plant foil, paper, fiber & yarn steel, plywood textiles cement, leather food tyre etc. World Class Solution In Web Process: We export to countries including Sudan, Nigeria, Sharjah, UAE, Srilanka, Bangladesh, Riyadh, Kuwait, Nepal, U.K, Bangkong Type of Rubber Used: Nitrile Rubber, Neoprene Rubber, EPDM Rubber, Hypolone Rubber, Butyl Rubber, Silicone Rubber, Natural Rubber, PVC Nitrile Rubber Ebonite Rubber |
|
Gravure Rubber Rolls & Lamination Rubber Rolls |
Solventless Lamination & Rollers |
Rotogravure Rubber Rolls & Lamination Rubber Rolls
Synthetic Neoprene Rubber Base
Synthetic Nitrile Rubber Base
Shore Hardness 60 to 65 & as per requirement
Dynamic Balance
Surface Grinding
All Diameter & Bearing Size
Applications:
• High Speed rotogravure machine
• Lamination Machine
• Nip Rollers |
Specialised Main Compound-Gayatri 100
Shore Hardness 80 to 85 & as per requirement
Surface Grinding
All Diameter & Bearing
Applications:
• Solventless Lamination, Adhesive
• Coating, Hot Meld Coating |
 |
 |
|
|

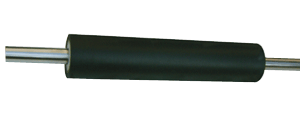

Flexographic Rubber Rolls |
Silicon Rubber Rolls |
Pure EPDM Rubber Coating
Shore Hardness 60 to 65
Surface Grinding
All Diameter & Bearing Size
Applications:
• High Speed Flexo Graphic Printing Machine
• VMCH Coating Machine
• All Types of Coating Machine
|
Silicon Rubber Rolls
Silicon Heating Base
Hardness as per requirement
Surface Grinding
All Diameter & Bearing Size
Applications:
• Cutting Sealing Machine, Foil Processing, Furnishing
• All Types of Plastic Machine Rubber Roll |
 |
 |
|
|
Rubber Expander Rollers (Banana Rolls) |
M.S. Steel Rolls (Mirror Finish Rolls) |
With Gear Box
Surface Polishing
All Lengths & Diameters
Applications:
• Lamination Machine
• Woven Sacks Machine
• Extruder Machine
• All Types of Plastic Machinery
• Textile & Paper Machinery
|
Surface Grinding
Dynamic balance & Bearing Size
Applications:
• High Speed Slitting Machine
• Extruder Machine
• VMCH Coating Machine
• High Speed Gravure Machine
• Lamination Machine
• All Types of Plastic Machine Roll |
 |
 |
|
|

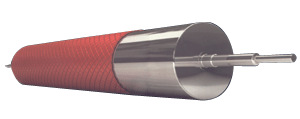

Diamond Cut Rolls |
Groove Roll |
 |
Salient Features:
• Dimensional accuracy grinding tolerance upto 15 microns
• Uniform hardness
• Excellent surface finish
• Resistance to printing chemicals, oils and ozone prevents shock and crack damage
• High abrasion resistance
• Excellent metal rubber bonding
• Dynamically balanced
• Rollers are free from pin holes and surface defeats
• Customs built to suit the different running speed of the machines & local
atmospheric conditions
• Recently we have launched Anti Static Roller to eliminate the static charge generated
from normal roller |
|
 |
|
|
|
|
|
|
|
